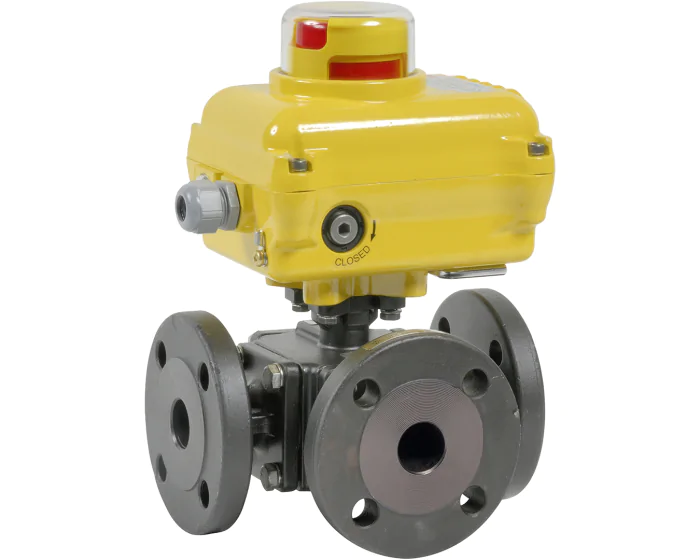

The 783 L or 784 T 3-way ball valve has a carbon steel body (1.0619), a stainless steel ball and PTFE seats. It is actuated with an SA/NA electric actuator. PS: 16 bar, TS: 150°C. Flanged attachments PN16 RF
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 304 |
| Manual override | By handwheel |
| Declutchable | Yes |
| DN | DN150 - 6'' |
| Duty service | S2 duty service - 70% |
| Protection index (IP) | IP 67 |
| Torque limiter | Yes |
| Recommended location | Outdoor |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 3 |
| Bore | Full |
| Packing gland | PTFE |
| PS (bar) | 16 |
| Power (W) | 90 |
| Connections | Flanged PN16 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | NA 60 |
| Electric actuator series | SA/NA series |
| Seats | PTFE-Glass |
| Operating time (s) | 29.0 |
| Voltage | 230 V AC |
| TS max (°C) | 150 |
| TS min (°C) | -20 |
| 3-way type | T-port |
| Warranty period | 1 year |
| CE | Risk category II |
| Range | Industry |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 25 | 275674023010 | S1004145 |
€834.14
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 32 | 275675023010 | S1004146 |
€974.99
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 65 | 275678023130 | S1004149 |
€2,369.79
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 80 | 275679023150 | S1004150 |
€2,917.20
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 100 | 275680023150 | S1004151 |
€5,026.76
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 125 | 275681023180 | S1004152 |
€6,786.03
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 150 | 275682023180 | S1004153 |
€9,170.11
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 25 | 275684023010 | S1004154 |
€834.14
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 32 | 275685023010 | S1004155 |
€974.99
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 65 | 275688023130 | S1004158 |
€2,369.79
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 80 | 275689023150 | S1004159 |
€2,917.20
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 100 | 275690023150 | S1004160 |
€5,026.76
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 125 | 275691023180 | S1004161 |
€6,786.03
(excl. btw)
|
add to cart |
| Flanged PN16 Carbon steel A216 WCB (1.0619) Full 150 | 275692023180 | S1004162 |
€9,170.11
(excl. btw)
|
add to cart |
